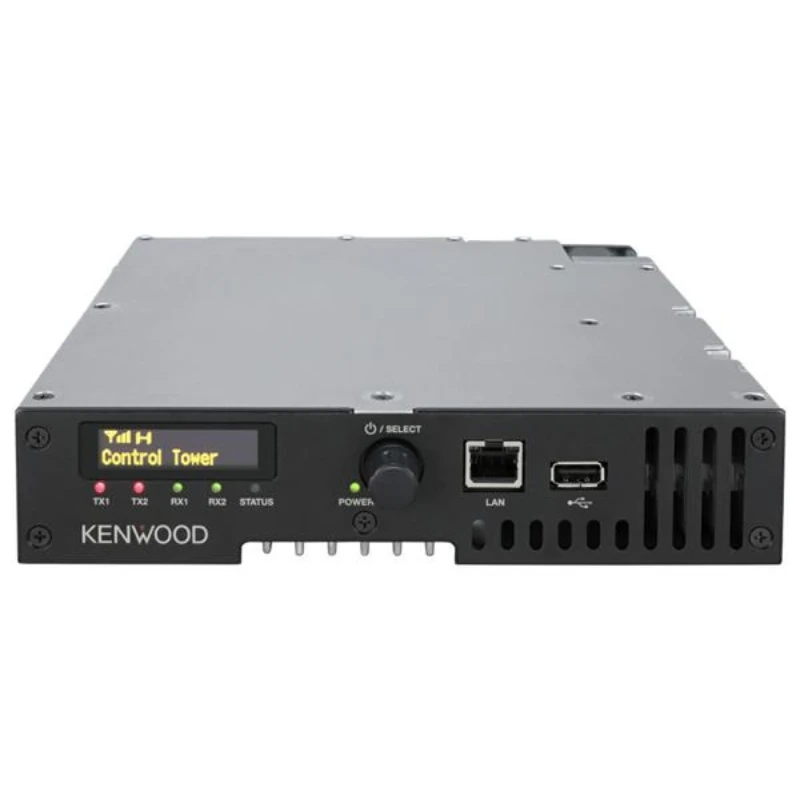

Kenwood NXR 1700 / NXR 1800

MULTI-MODE, SINGLE-MINDED, SPACE-SAVING SOLUTION

This compact, multi-mode conventional repeater – key digital communications equipment that is a KENWOOD speciality – supports the features and performance to make it a worthy successor to the existing DMR and NXDN repeaters such as the TKR-D710/D810 and NXR-710/810. The digital protocol is chosen when ordering to set up individual units for either DMR or NXDN, with the option of keeping the factory default setting of FM analogue.

Description

  • 50/40 W – 1 W RF Output Power (Up to
  • 50/40 W@50%, 25 W@100% Duty Cycle)
  • Light, Compact and Space-Efficient to
  • Fit 2 Repeaters in a 1U Height, 19-inch
  • Rack
  • Large 1.71-inch OLED with Icons and
  • Numeric Displays
  • Thermal-Controlled Cooling Fan
  • External Power Supply
  • Up to 32 Channels
  • Selectable Digital Protocol: DMR Tier II /
  • NXDN Conventional (programmable one at a time)
  • USB-A Connector for Audio Accessories
  • External In/Out Pin from DB25
  • Non-Repeat Simplex / Semi-Duplex Mode
  • for Analogue and NXDN Digital
  • Hot Standby System Redundancy
  • Built-in IP Network Adapter
  • Multicast Routing
  • SNMP Protocol for Direct Reporting to
  • a Generic System
  • Supports G.711 Audio Codec (for Test
  • Console and Third-party Applications)
  • IP Remote Management (Monitor / Control /
  • Programming / Test Console)
  • IPIF to External Applications
  • (for IP Console, OTAP)
  • / Voice Logging*3 for NXDN only
  • Built-in SIP IF without External Gateway
  • (Digital Only)*1, *2
  • IP Remote Control Interface (IPRCI)
  • Enhanced Security (HTTPS)
  • CW ID
  • Hang Timer
